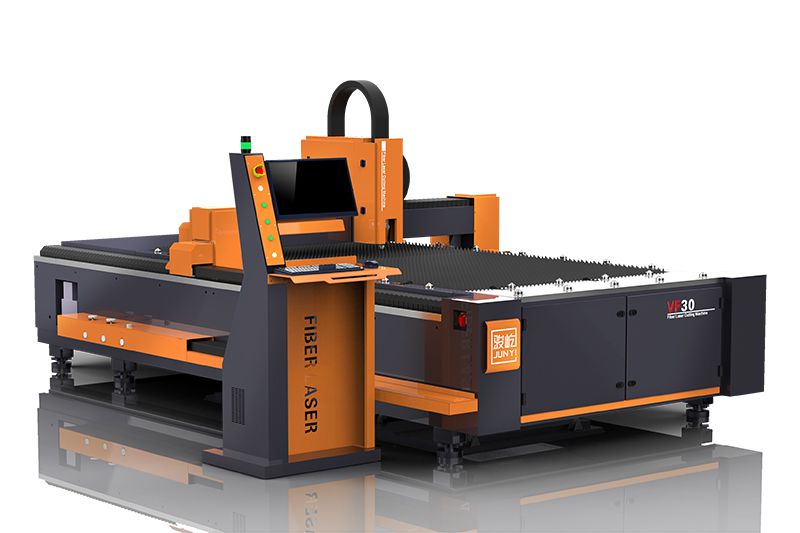

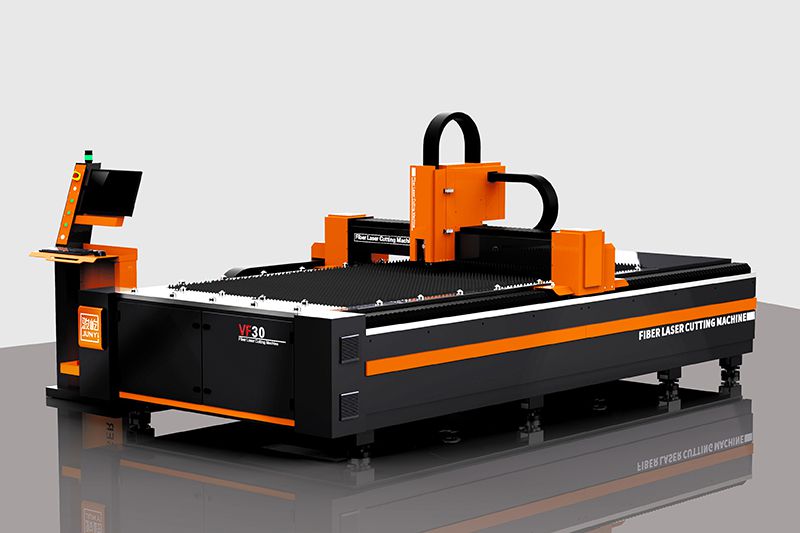

Fiber Laser Cutting Machine, VF3015 Thin Metal Cutting

• Working area (L*W): 3000*1500 mm
• Laser power: 1000W/1500W/2000W
• Positioning accuracy: ±0.05 mm/m
• Repositioning accuracy: ±0.03 mm/m
• Max. speed: 80000 mm/min
• Dimensions (L*W*H): 4500*2230*2100 mm
• Weight: 3 ton

Request a quote

The target of our VF3015 open type fiber laser cutting machine includes stainless steel, aluminum, carbon steel, alloy steel, brass and more various sheet metals. So it is also called as fiber laser metal cutting machine, which is ideal metalworking equipment for sheet metal processing and industrial cutting companies, as well as any sectors where sheet metal fabricating processes are required, such as automotive manufacturing, precision parts production, kitchenware production, etc.

• Fiber line transmission, no need for adjustment of optical path;
• Precise height control to maintain stable cutting quality;
• The fiber laser cutting machine is 2-3 times quicker in cutting than other cutting machines, especially when cutting thin sheet metals, with high quality cutting results;
• Laser focus can be as small as 25 um, meaning cutting kerf can be very narrow and no deformation will be caused;

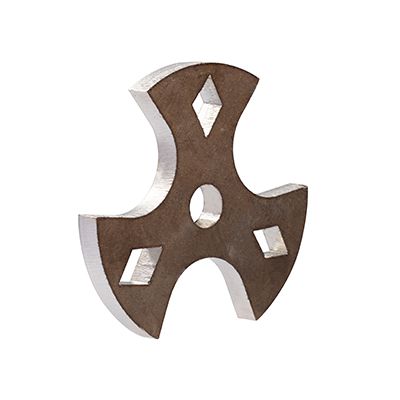

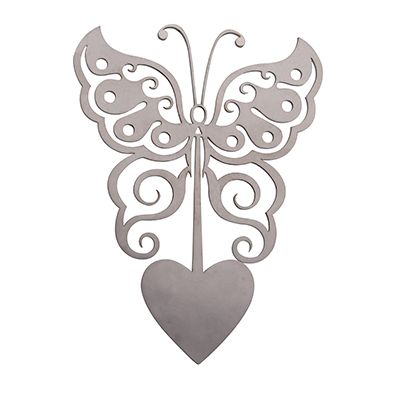

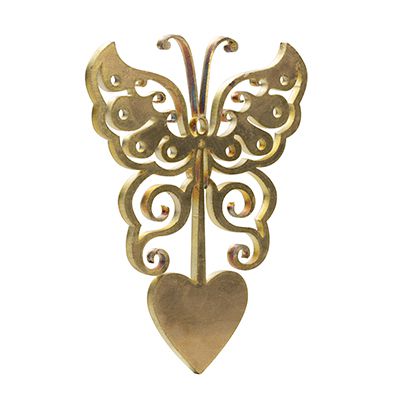

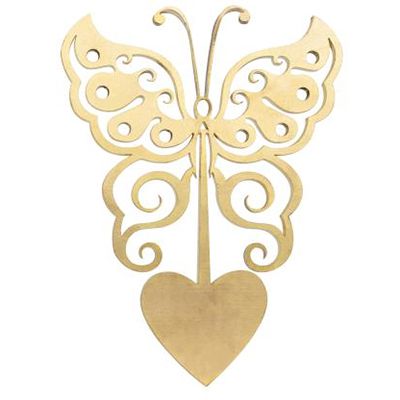

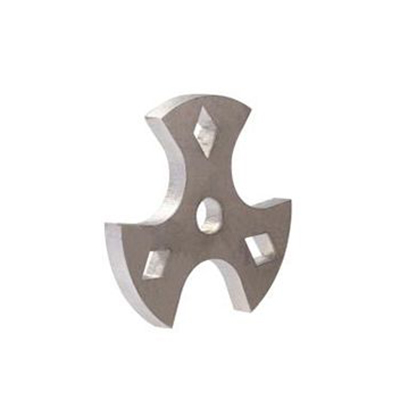

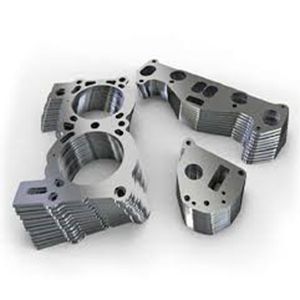

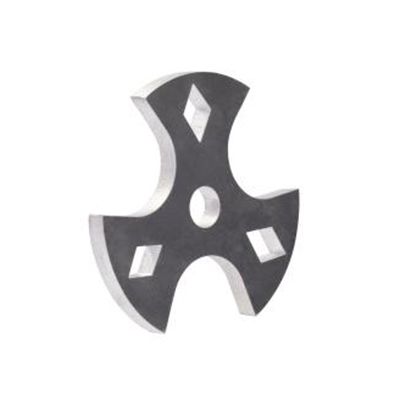

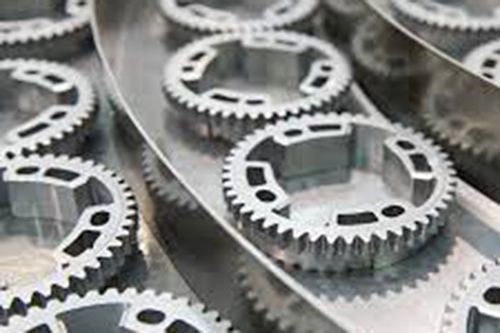

• This fiber laser cutting machine is applicable for cutting carbon steel, stainless steel, aluminum and copper;
• Applied in a wide range of industries, including sheet metal processing, digital products and advertising;
• 30% of electricity will be translated into laser energy during the cutting, which is higher than the CO₂ laser cutter (10%-15%) and diode laser cutter (less than 5%);

This series of fiber laser cutting machines is our standard fiber laser machine offered with laser power ranging between 1000W and 2000W. It allows metal fabricators to achieve high production and stable cutting operation for the metal fabrication industry. At JUNYI we can get you high performance fiber laser cutting machine exceeding your expectation, and put in to production within 20 days once your order is placed.

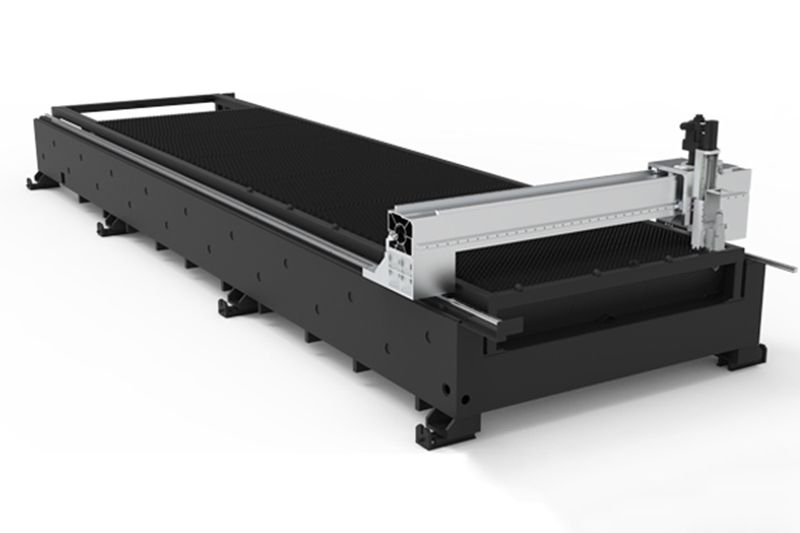

With the demonstration by CAE analysis, the all-steel welded machine bed is characterized by high strength and stability, excellent resistance to wear and corrosion thanks to a 600-degree heat treatment for internal stress relieving. The underlying hollow structure of laser machine bed is constructed with less heating area in mind to prolong its service life. Air assist system means blowing air from side to remove smoke, giving a clean work environment for metal processing.

---

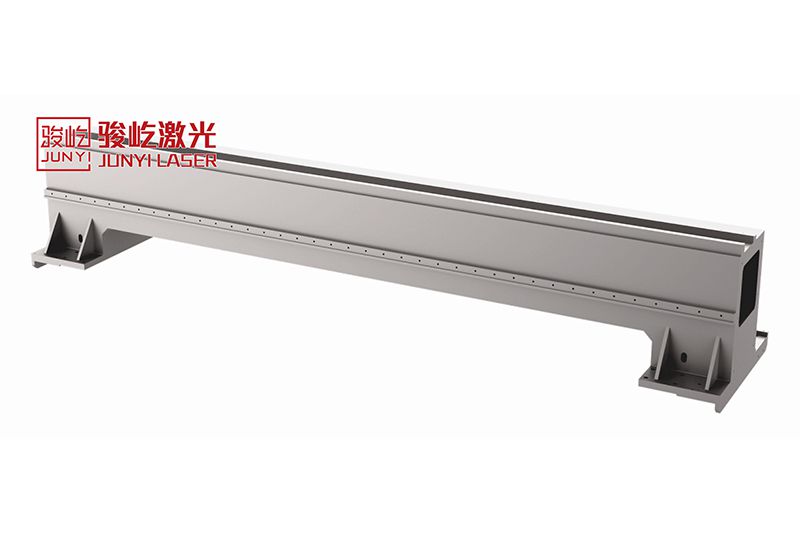

The aviation aluminum beam with gantry structure features lightweight, high strength, low distortion and good dynamic response.

---

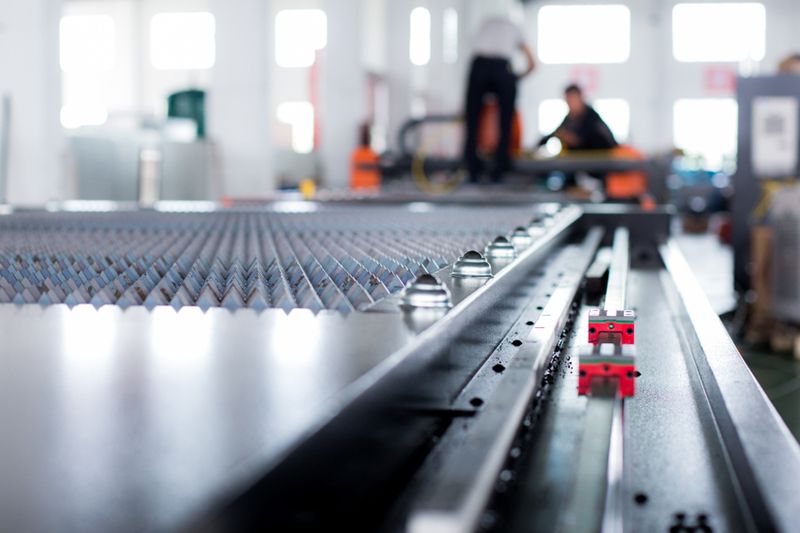

The open type cutting table is equipped with ball transfer unit that enables workpieces to be loaded and unloaded from three sides, efficiently preventing sheet metal from being scratched.

---

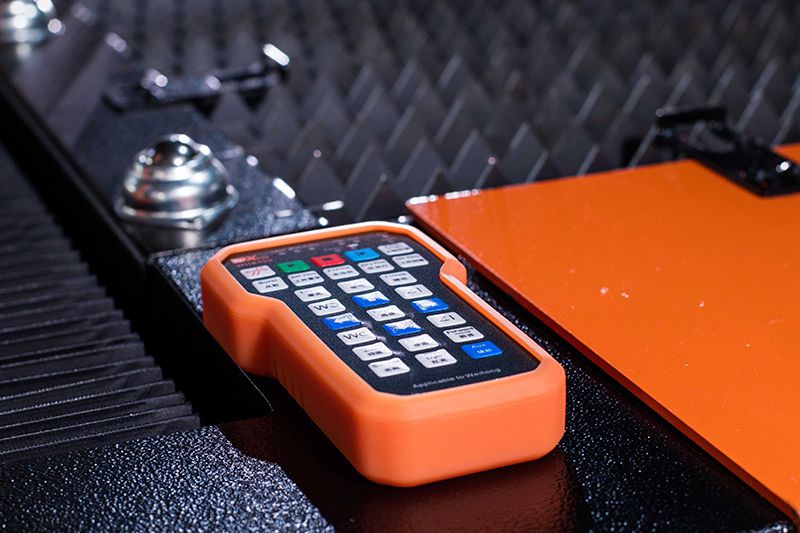

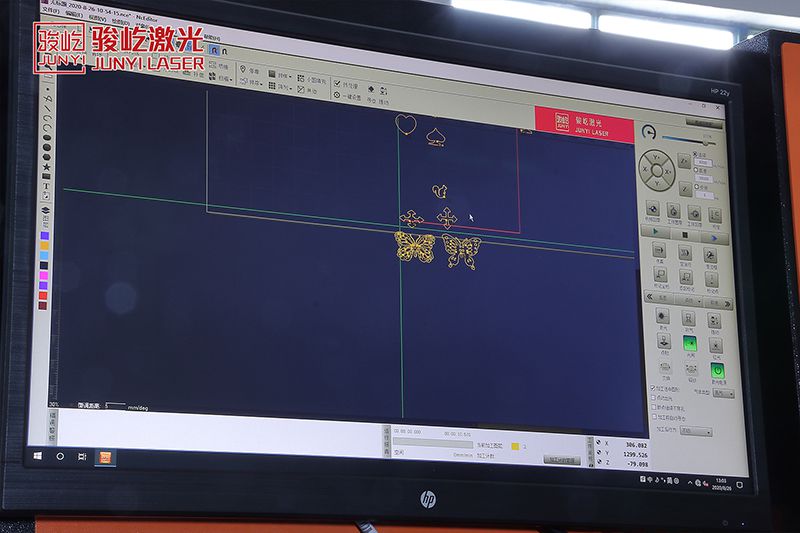

Intelligent control unit supports remote control, the magnetic design of which provides high flexibility for operator to put and take at any time.

---

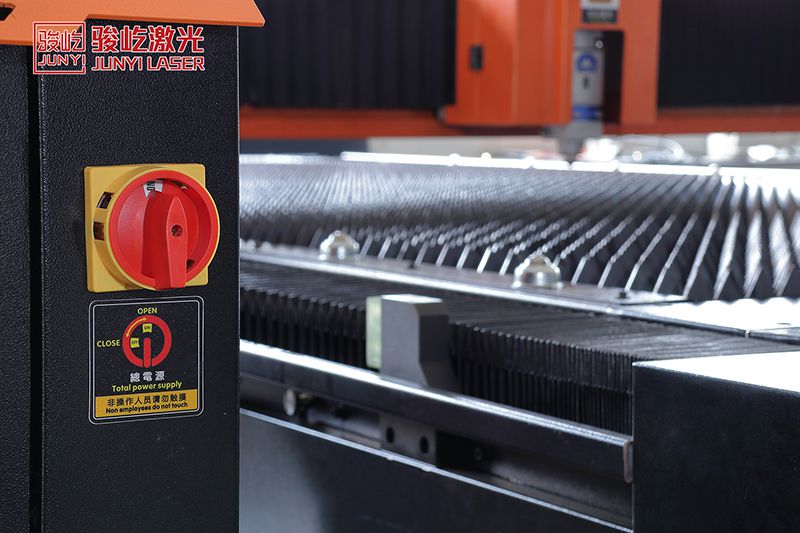

Monitoring and protection functions for laser system and servo motor are activated to assist operator in accessing to operation status and equipment failure, providing operator with great convenience for maintenance of fiber laser cutting machine.

---

This fiber laser cutting machine has a compact size (length 4500mm, width 2230mm and height 2100mm), which allows for putting in a standard shipping container.
