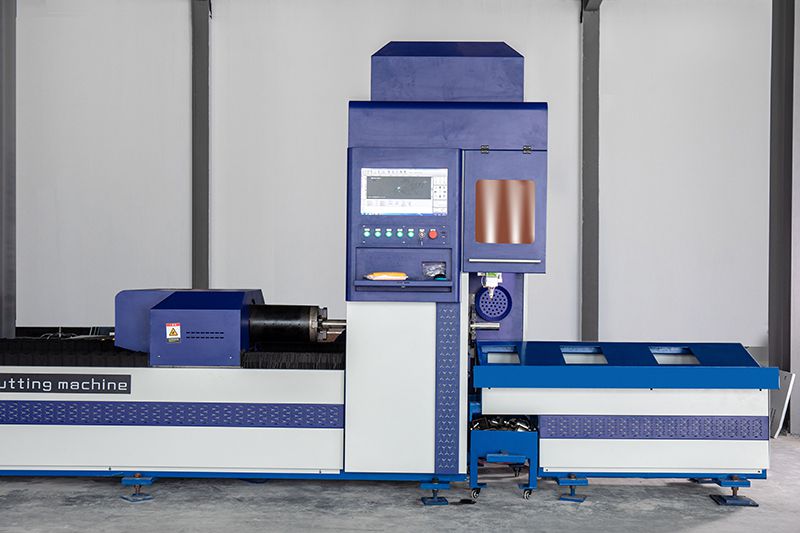

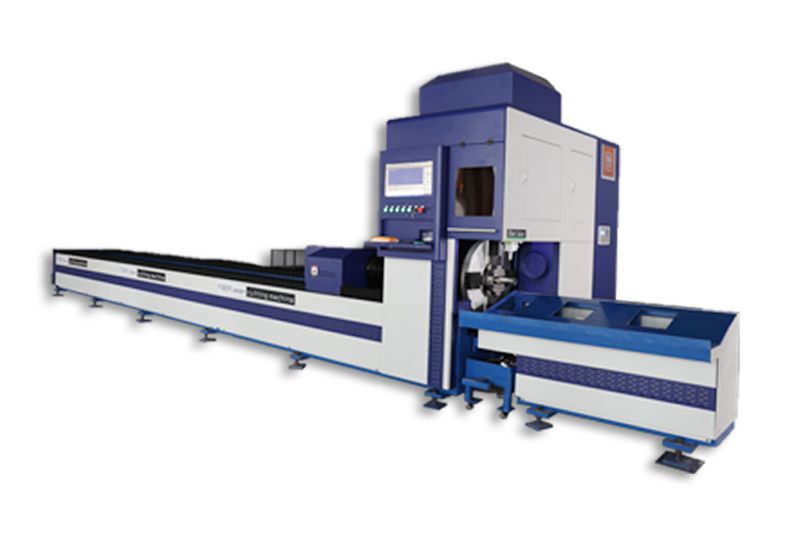

Fiber Laser Cutting Machine, VF60G Metal Tubes and Profiles Cutting
- Max. finished tube length: 6000mm
- Max. unprocessed tube for loading: 100-6100mm
- Cutting diameter: Square/rectangular tube: 10-240mm
- Round tube: 15-350mm
- Max. speed: ≤110m/min
- Chuck size: 120/220/350mm
- Max. load (single tube): 170/300/800KG
- Max. rotation speed of ABC axis: 110rpm

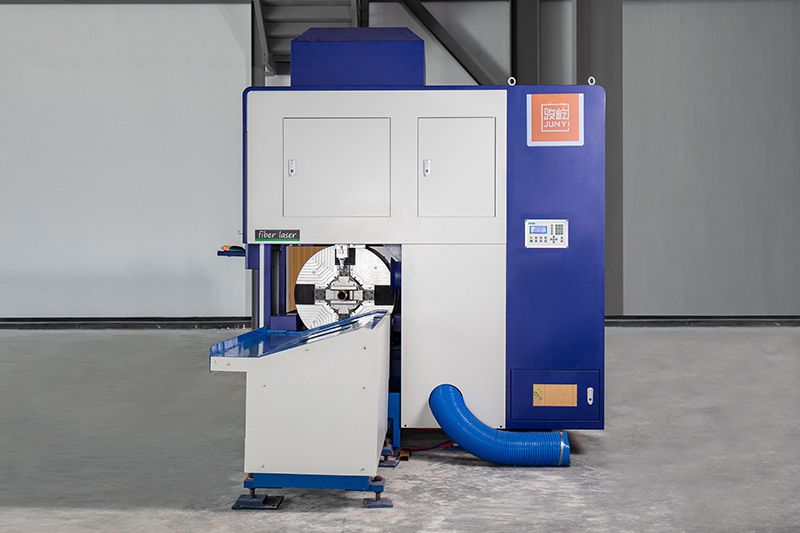

VF60G fiber laser tube cutting machine is a versatile and productive solution for cutting and hole making on square tubes, rectangular tubes, round tubes, oval tubes and profiles. Available in laser power ranging between 1000W and 3000W and configured with high precision digital chucks, this laser tube cutting machine can load a single tube up to 800kg in weight, therefore providing a higher yield for metal fabricators.

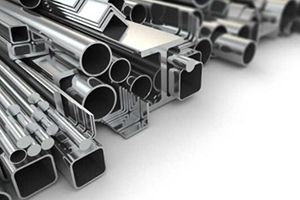

- This fiber laser cutting machine is able to cut sheet metals and tubes made of different materials, such as carbon steel, stainless steel and aluminum, and in different shapes, such as steel channel, steel angle, I beam, rectangular tube and oval tube;
- Equipped with automatic self-centering chuck that features great airtightness and excellent performance. Tube cutting machine with three chucks is optional;
- Zero residue, less material consumption;
- This fiber laser cutting machine is known for precise and efficient cutting. At the same time, the operation cost is very low;
- Cutting nesting software is available;
- Automatic or semi-automatic pallet changer is optional;

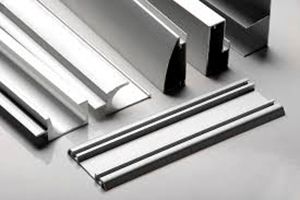

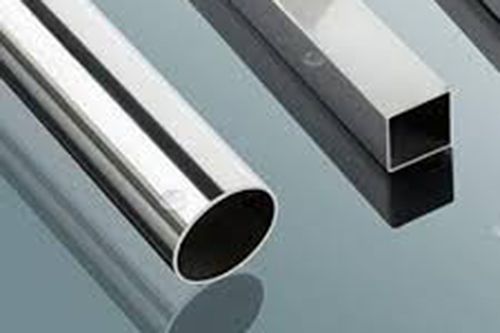

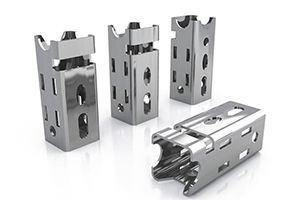

Developed for the profile and tube cutting market, this fiber laser machine can make cutting, contour cutting and hole cutting of standard metal tubes & pipes, profiles and some shaped tubes. It is widely used in kitchenware, lighting, automotive, fitness equipment, hardware and more industries requiring metal fabrication and tube processing machines.

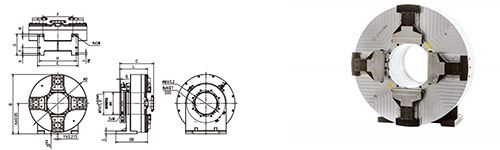

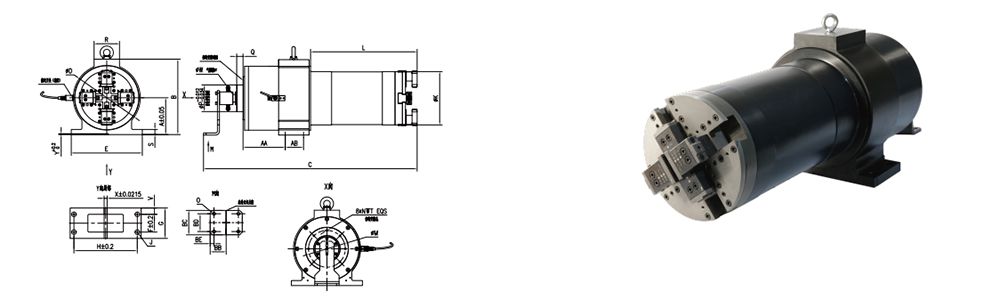

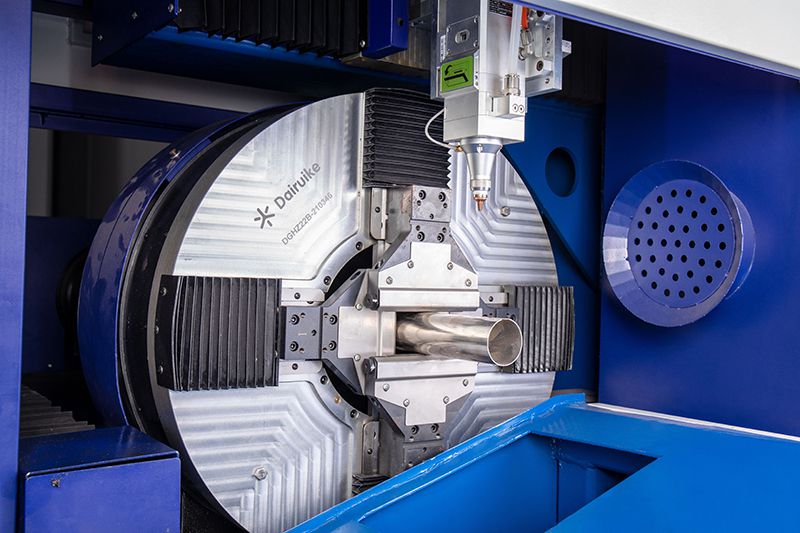

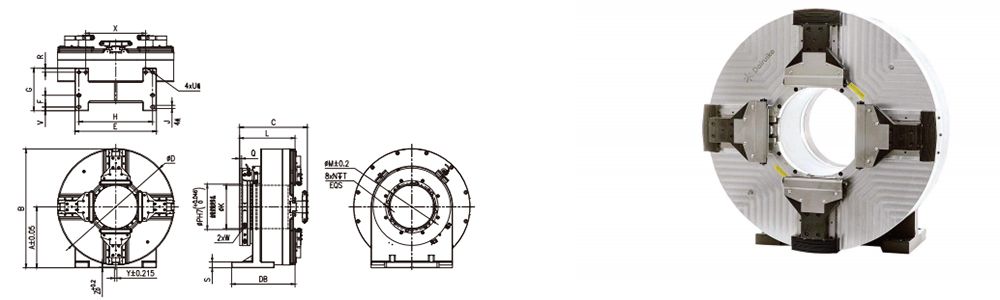

Double automatic chucks are featured by rated rotation speed of 110rpm which is threefold that of ordinary electric chucks. They have the functions of one-key clamping with constant clamping force, providing non-destructive tube clamping without distortion.
Tube support device can withstand single tube weight up to 300kg or 800kg depending on the type of chucks used in this fiber laser cutting machine, heavy metal tubes can be processed efficiently without loosening or slipping.

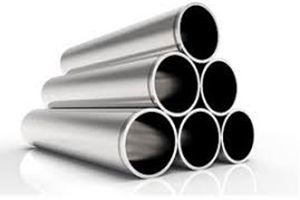

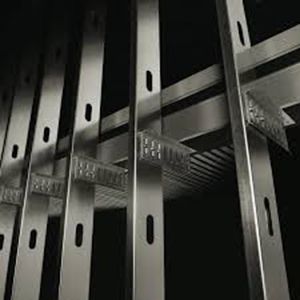

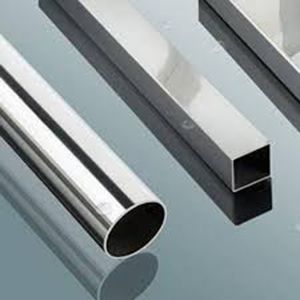

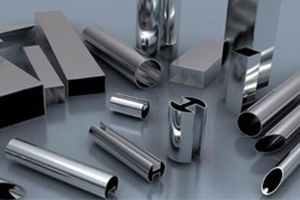

Characterized by wide processing range, this laser tube cutting machine can process round tubes with diameter rang of 15mm-220mm/350mm, and 2D cutting of a variety of special profile tubes, steel channels, H shaped profiles, etc.

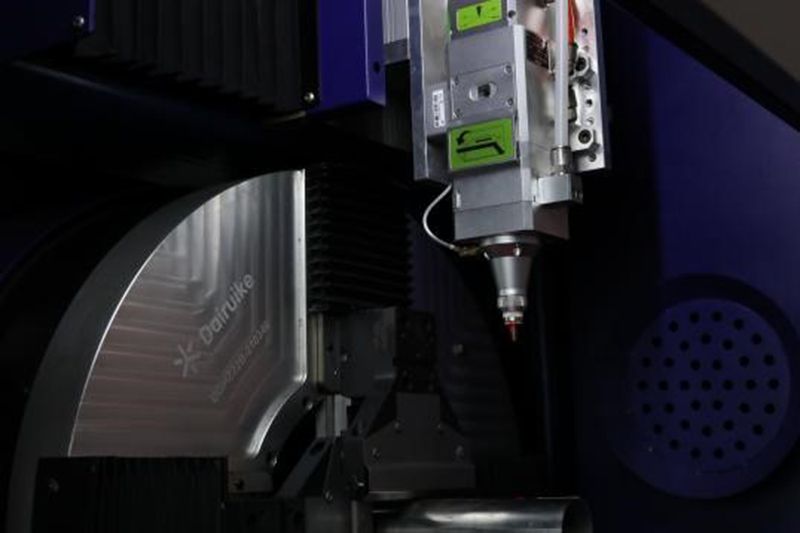

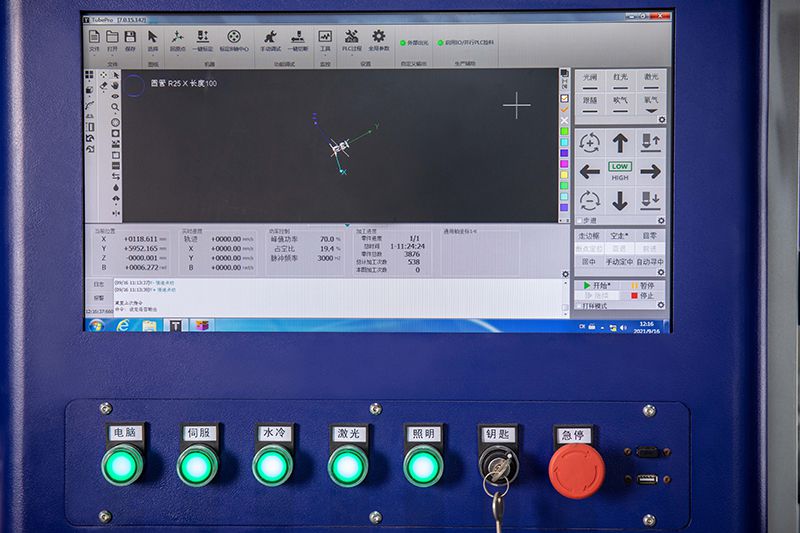

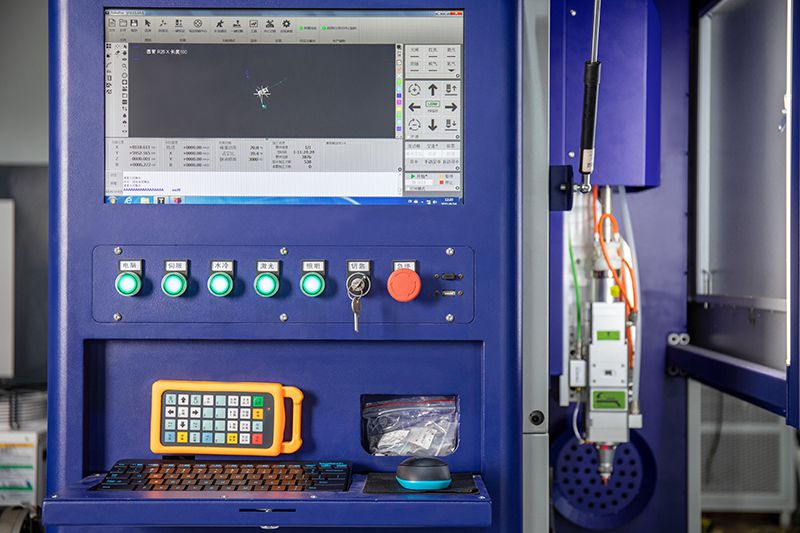

Based on the BUS real-time control system, the efficient and precise cutting can be achieved by compensation of cutting precision and rotation precision.

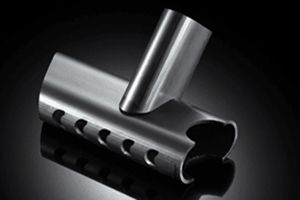

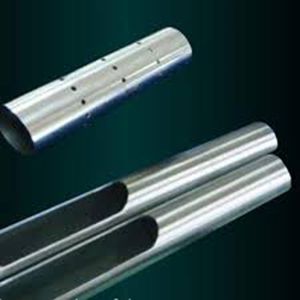

This laser tube cutting machine can manufacture intersecting holes of different diameters and different directions on the main tube.
A broad set of cutting data is pre-stored on the metal tube cutting machine, the data can be called through one click to achieve intelligent production. The unloading unit has an inclined surface for automatic collection of finished tubes.
- We have over 10 years of experience in the field of laser equipment, capable of providing you with reliable laser machines with appropriate solutions tailored to your individual applications.
- We have a team of more than 100 professionals, and our customer service department will provide you with technical support as well as complete pre-sales, sales and after-sales service.
- Our products are approved by over 3000 customers around the globe, the reliable performance of our equipment and excellent service are highly appreciated by our customers worldwide.
-
- Handheld Laser WelderConnector type: QBH
Power: 1000W/1500W/2000W
HW series handheld welding machine is designed to simplify the operation steps and make the smooth welding seam into reality. The stable operation experience could be accounted a success of single wobble welding head.Read More
-

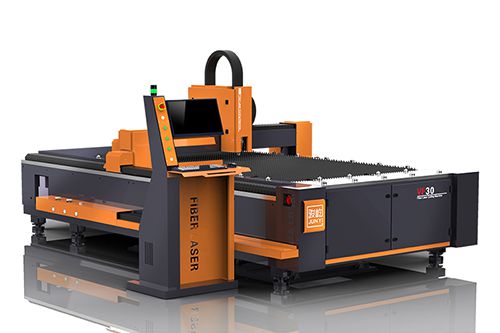

- Fiber Laser Cutting Machine (Thin Metal Cutting)Working area (L*W): 3000*1500 mm
Laser power: 1000W/1500W/2000W
The target of our VF3015 open type fiber laser cutting machine includes stainless steel, aluminum, carbon steel, alloy steel, brass and more various sheet metals. Read More
-
- Fiber Laser Cutting Machine (Medium-thickness Metal Cutting)Working area (L*W): 3000*1500mm
Laser power: 3000W/4000W
VS3015 series fiber laser cutting machine is flexible enough to accommodate any orders of large-scale production in the aspect of metal cutting and engraving.Read More
-

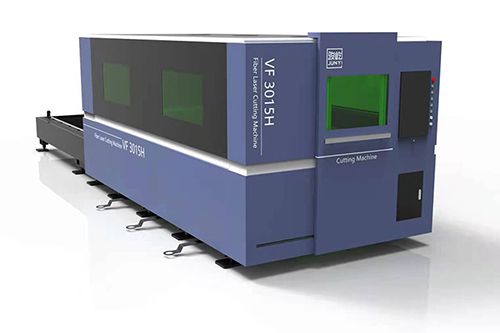

- Fully Enclosed Fiber Laser Cutting MachineWorking area (L*W): 3050*1540mm*2
Laser power: 3000W/4000W/6000W
This edition of fiber laser cutting machine was developed in response to the global customer needs of high power fiber laser system for the metal cutting industry.Read More
-

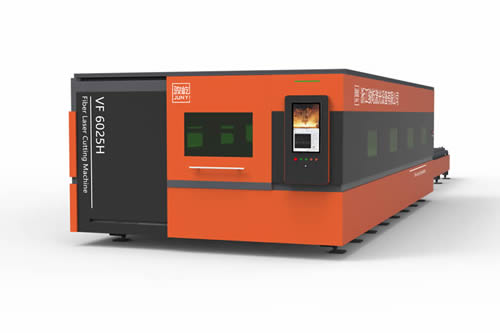

- Fully Enclosed Fiber Laser Cutting Machine (High Power)Working area (L*W): 6000*2500mm*2
