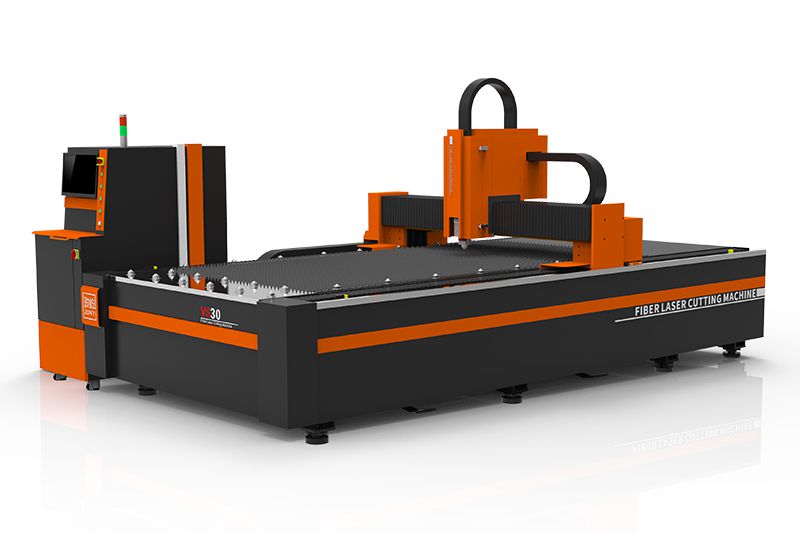

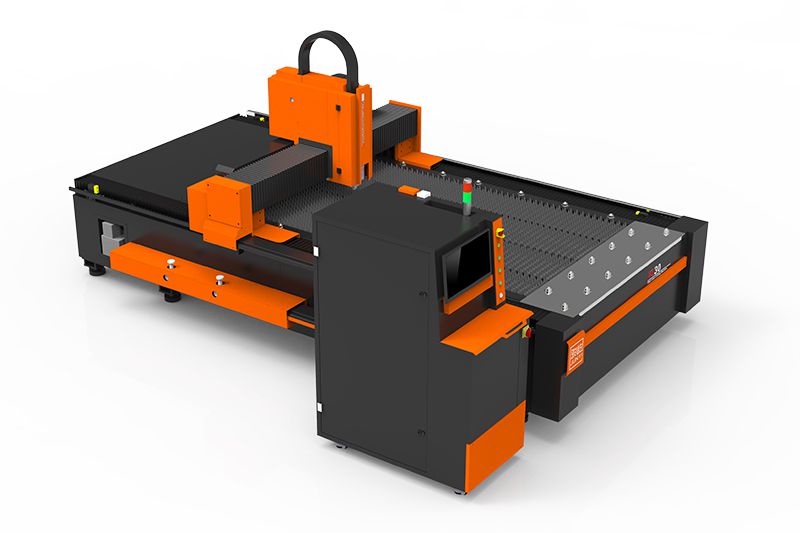

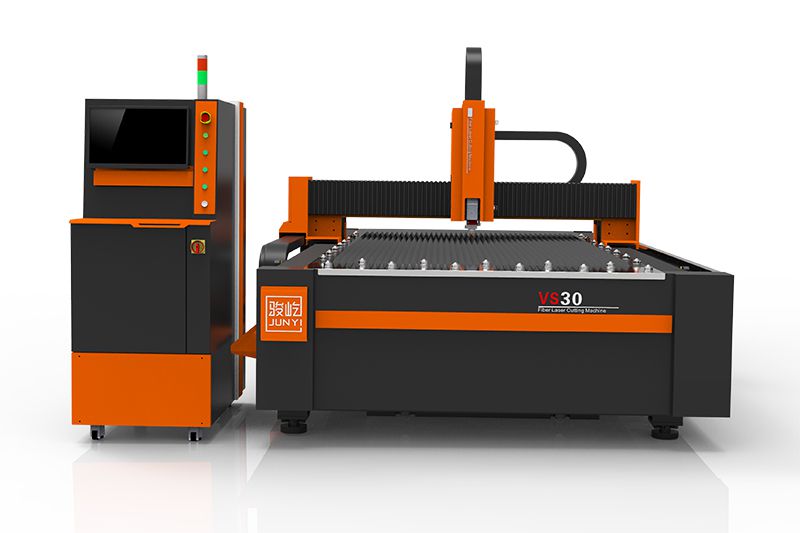

Fiber Laser Cutting Machine, VS3015 Medium-thickness Metal Cutting

• Working area (L*W): 3000*1500 mm
• Laser power: 3000W/4000W/6000W
• Positioning accuracy: ±0.05 mm/m
• Repositioning accuracy: ±0.03 mm/m
• Max. speed: 100000 mm/min
• Dimensions (L*W*H): 4500*2230*2100 mm
• Weight: 3.5 ton

Request a quote

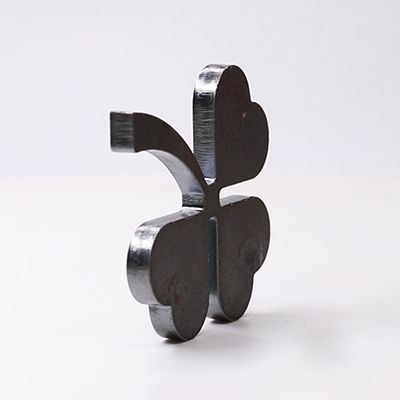

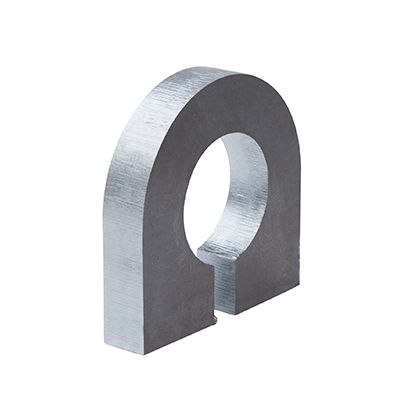

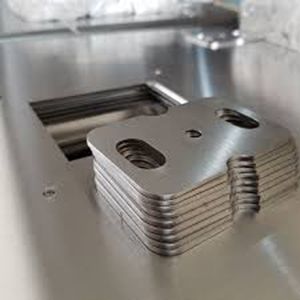

VS3015 series fiber laser cutting machine is flexible enough to accommodate any orders of large-scale production in the aspect of metal cutting and engraving. This fiber laser cutter can cut medium thickness sheets of different metal materials, like carbon steel of up to 18mm and stainless steel of op to 10mm. The metal laser cutting machine boasts a heavy duty machine bed that accommodates laser power of 3kW or 4kW for stable machining operation and improved working efficiency.

• Machine body of this fiber laser cutting machine is constructed with high grade steel plate through integrated welding process and stress relief annealing at 600℃, therefore it is durable and can stay stable during operation even in extreme conditions;
• The total weight of the fiber laser cutting machine is around 3 tons, the robust structure ensures the stability in full operation;
• Multiple waste collectors are equipped to remove dust generated during the cutting process, in compliance with international standards of environmental protection;
• Beam of the fiber laser cutter is made of aerospace grade aluminum, the lightweight of which helps maximize the processing speed;
• Air conditioner is installed inside the control panel so as to maintain temperature and humidity in different environments;
• Components of this fiber laser cutting machine are all from international leading brands, such as Raytools laser head, Maxphotonics laser, rack gear guide rail from Taiwan, flange reducer and motor from Japan;
• The fiber laser cutting machine is certified in accordance with European CE standards and has been exported to Poland, Mexico, Italy, South Korea, Singapore, Malaysia, Thailand and Vietnam.

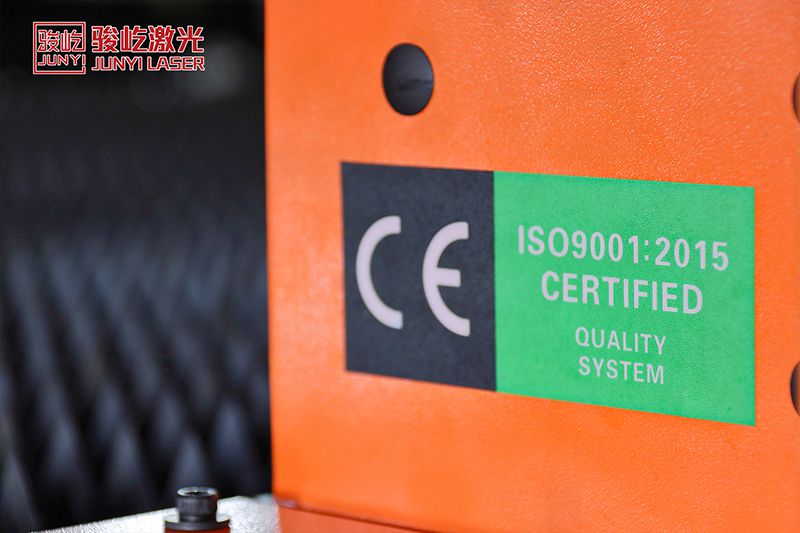

This fiber laser cutting machine is CE certified. The safety performance and working efficiency of the laser system are particularly praised and approved by a number of customers. It is the model with the highest repurchase rate among our laser cutting machines.

---

Independent CNC control coupled with nano-interpolation means ultra-fast response of multi axes, providing high quality surface finish and accuracy.

---

The electrical control cabinet is separately placed to limit exposure to aging and facilitate troubleshooting. Exceptional sealing design of the cabinet helps prevent dust from entering and guaranteeing the smooth operation and high performance.

---

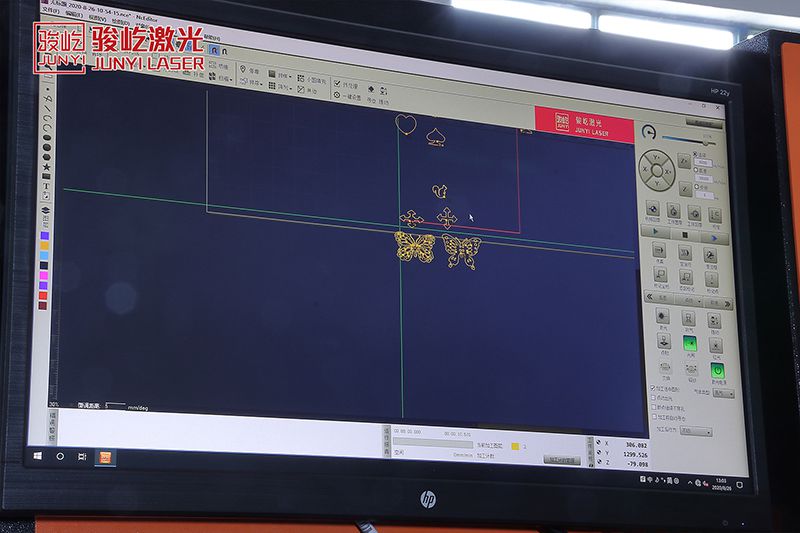

Supported with professional laser cutting software, this fiber laser cutting machine can promote the efficient use of sheet metal via automatic nesting and production planning, significantly improving the efficiency of metal processing.

---

Optimal configurations of the fiber laser machine feature high performance rivaling that of similar laser cutting machines from world's well-known brands, but much less maintenance cost than those with equivalent capacity.

---

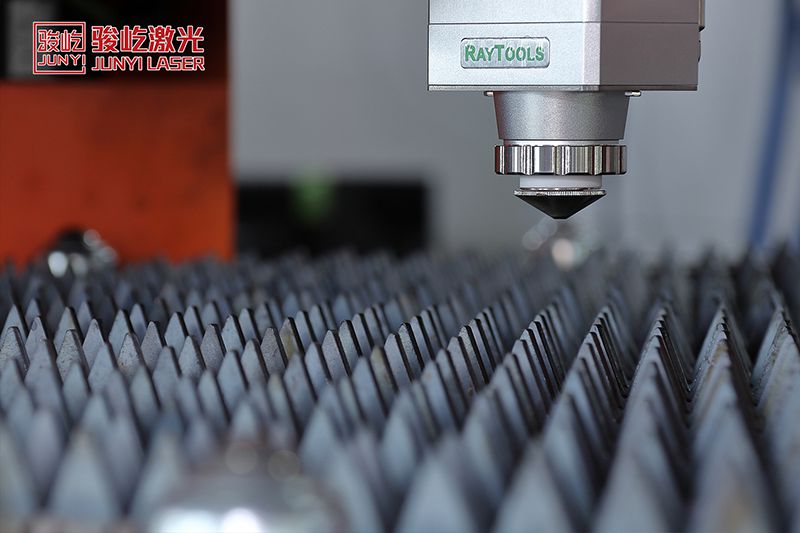

The laser cutting head features anti-collision function, fast piercing and flying cutting of medium-thickness sheet metals result in enhanced processing efficiency while keeping a minimal operating cost.
