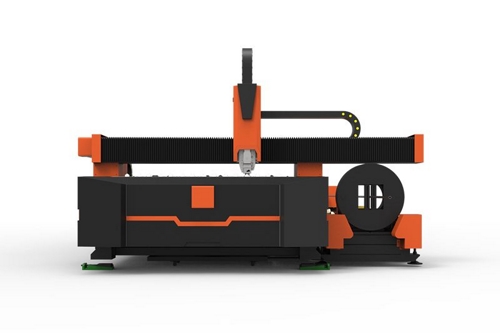

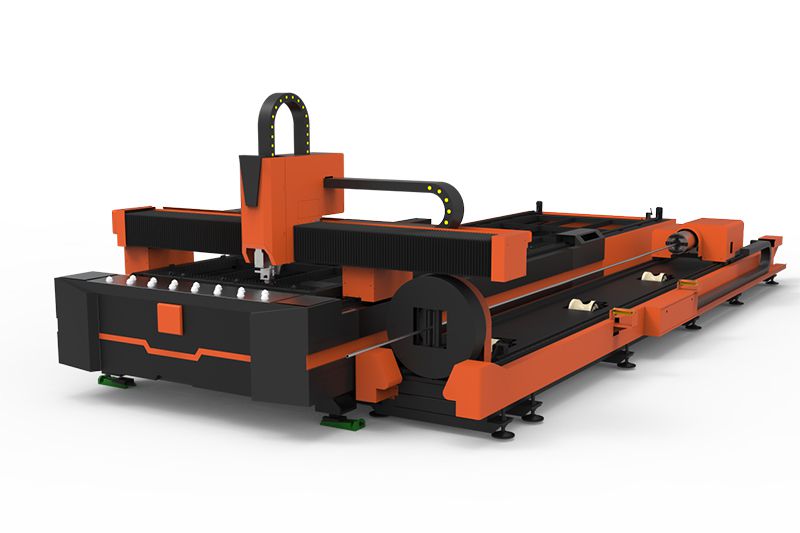

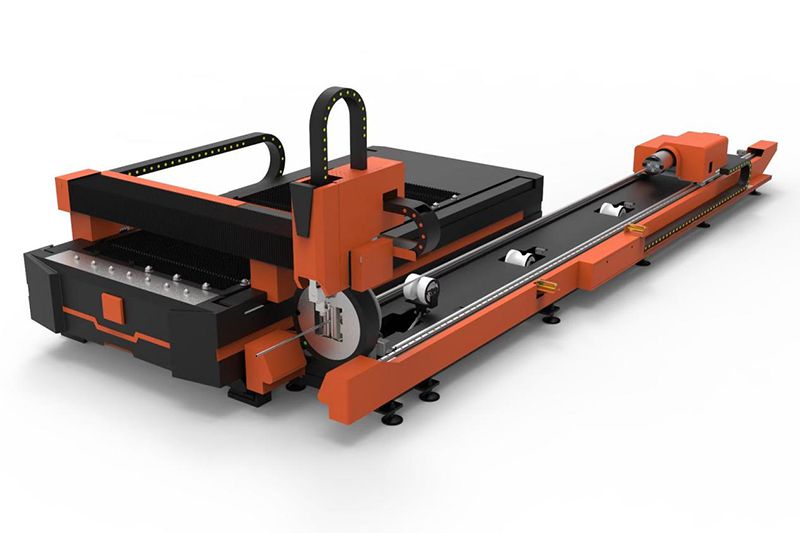

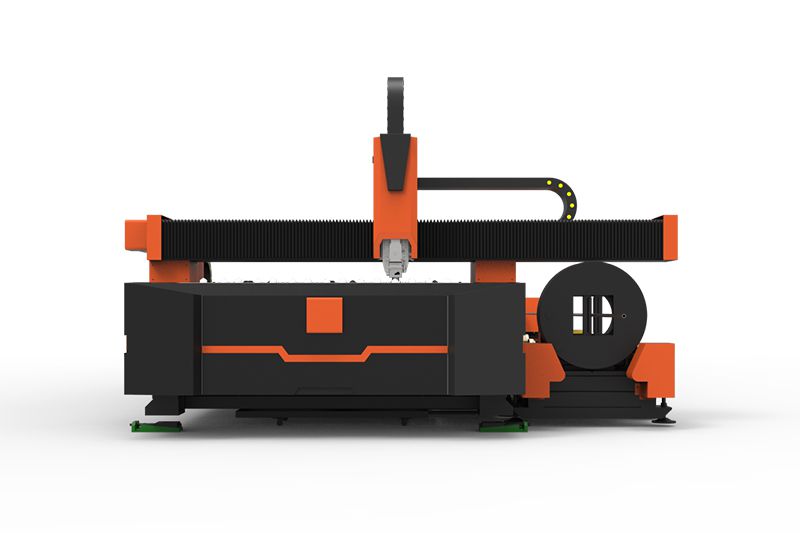

Metal Sheet & Tube Laser Cutting Machine, VF3015HG/VF6015HG

• Working area (L*W): 3000*1500 mm*2 (sheet), 6000 mm (tube)
• Laser power: 1500 W/2000 W/3000 W/6000 W
• Positioning accuracy: ±0.05 mm/m
• Repositioning accuracy: ±0.03 mm/m
• Max. speed: 120,000 mm/min
• Dimensions (L*W*H): 8250*3290*2200 mm

Request a quote

You don't need to buy machines separately since this fiber laser cutting machine is able to cut both sheet metals and tubes, which makes perfect economic sense and save a lot of space. The working area for cutting sheet metals can be either 1.5m*3m or 1.5m*6m, and for cutting metal tubes of 6m in length.

When equipped with a nesting software, the fiber laser cutting machine can cut both standard metal tubes, like square and round tubes, and shaped metal tubes, like steel channels and I beams.

When cutting, the laser head of the tube laser cutting machine can focus automatically, servo motor on Z-axis will be activated for height adjustment, both chucks will clamp tubes and later, the rear chuck will pass the tube to the front chuck for cutting. During this process, waste will be avoided and resource usage rate will be maximized

Nozzle, auxiliary gases and specific parameters should be changed based on different cutting tasks.

Regular cleaning and maintenance are recommended to prolong the service life of the fiber laser machine.

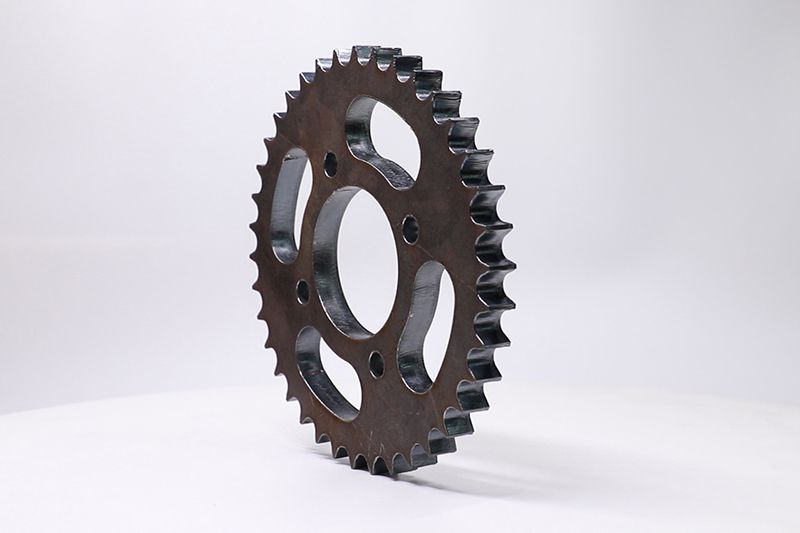

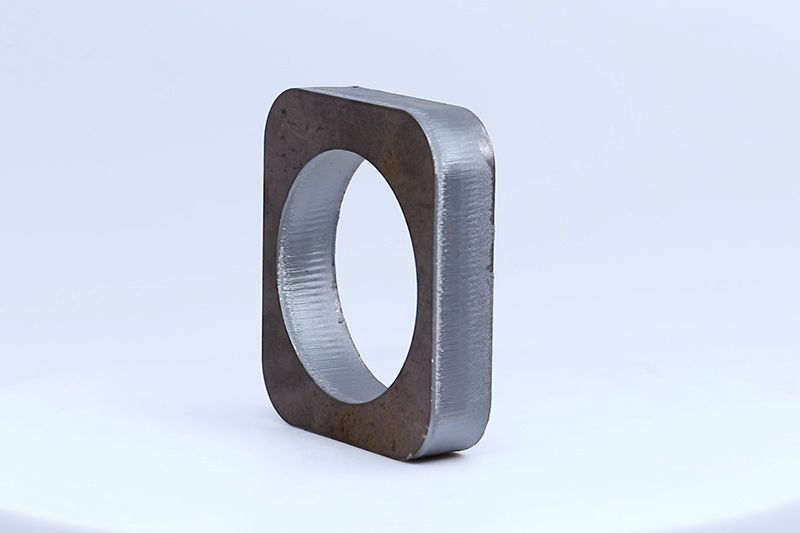

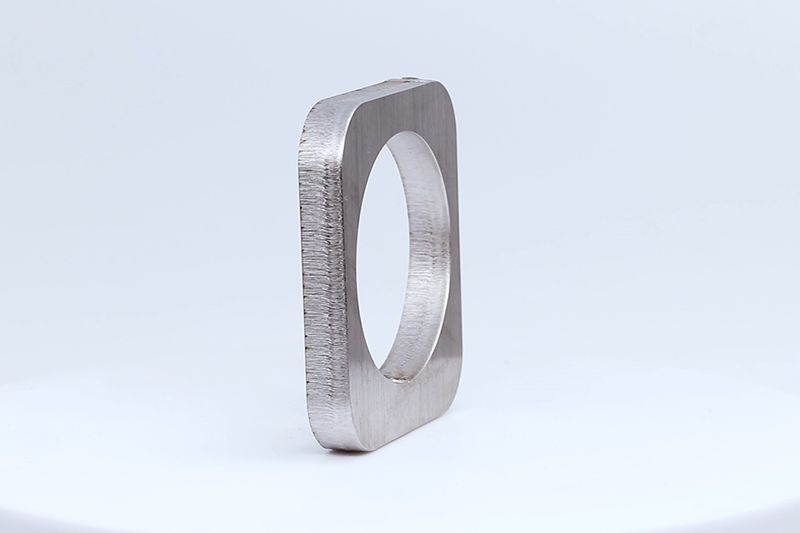

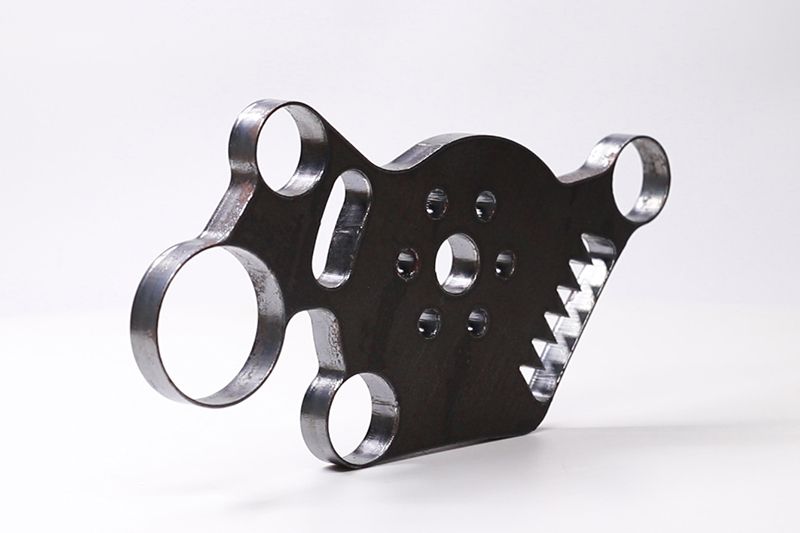

This fiber laser cutting machine is made to cut both tubes and sheet metals that are made of different materials, such as stainless steel, carbon steel, aluminum, copper, nickel and titanium.

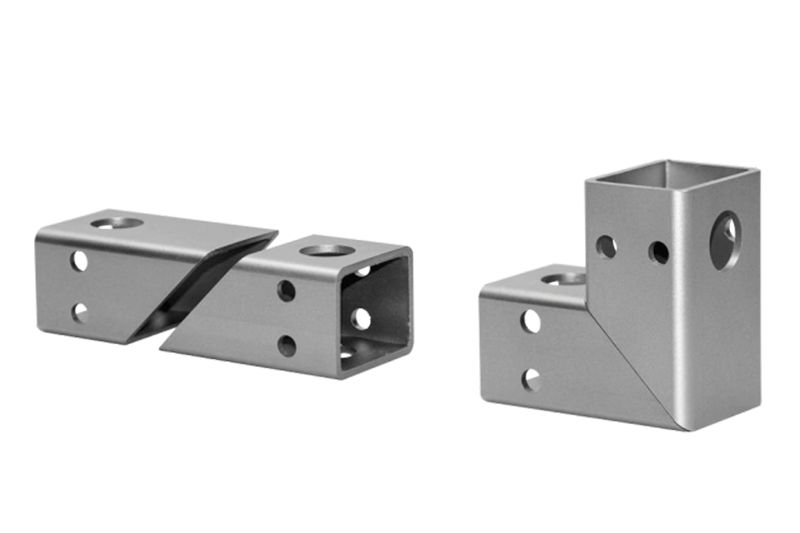

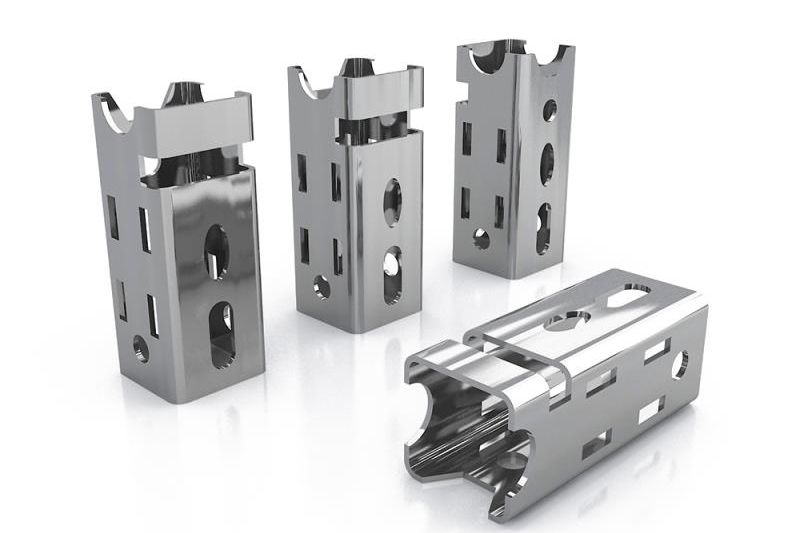

This fiber laser cutting machine is able to cut sheet metals and tubes with different shapes, such as square tube, round tube, shaped tube, steel channel and I beam.

---

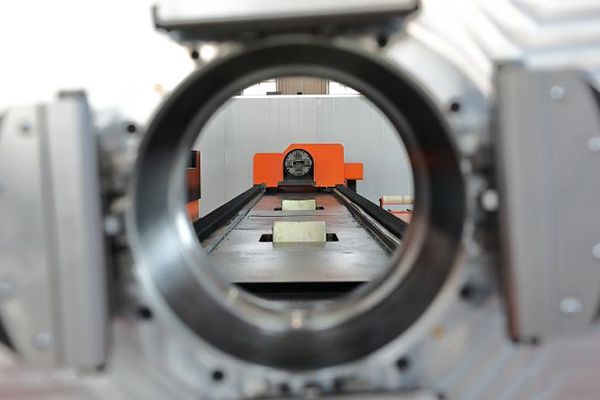

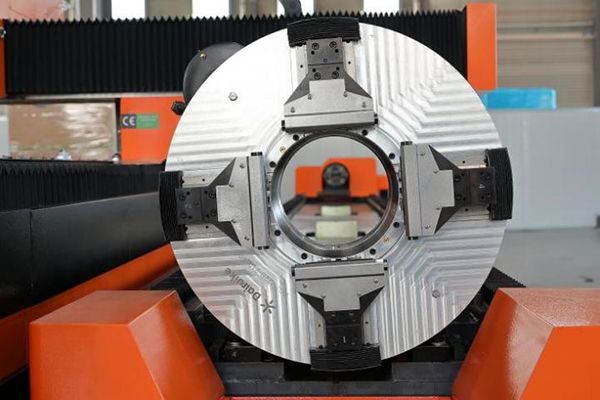

Double automatic pneumatic chucks are made by China’s leading chuck company. Featuring self-centering and clamping force auto adjustment, the chucks enable the laser machine to cut precisely and effectively without damaging the tube.

---

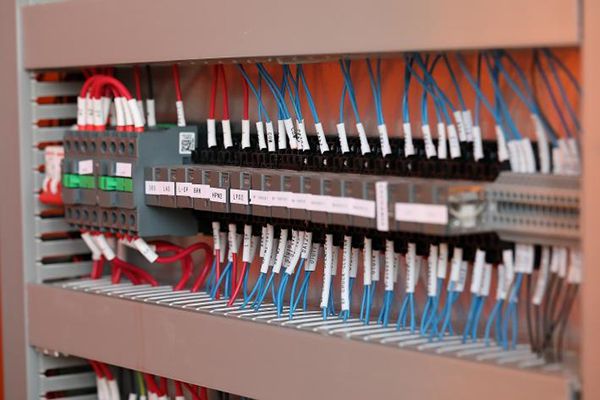

Wires in control panel are meticulously organized to prevent dust from building up, hence avoiding circuit aging.

---

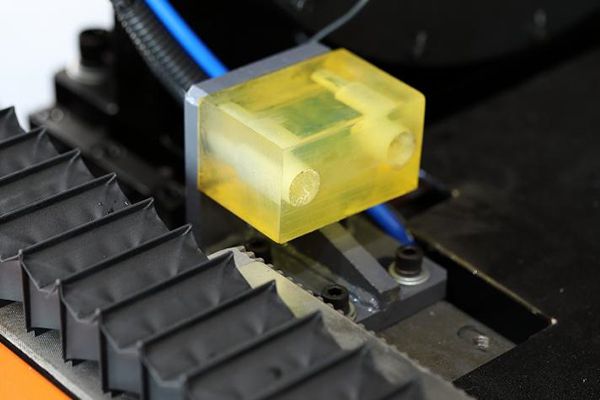

Rubber stoppers are installed on the front and back of the fiber laser cutting machine, so as to enhance stability and safety.

---

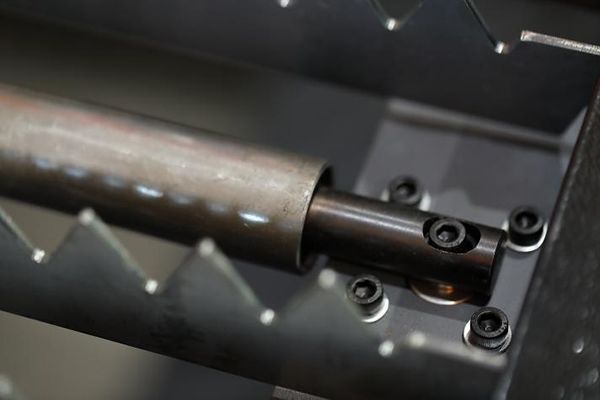

Ejector pin is installed and can be activated through one button. It can avoid scratches on tubes or sheet metals.

---

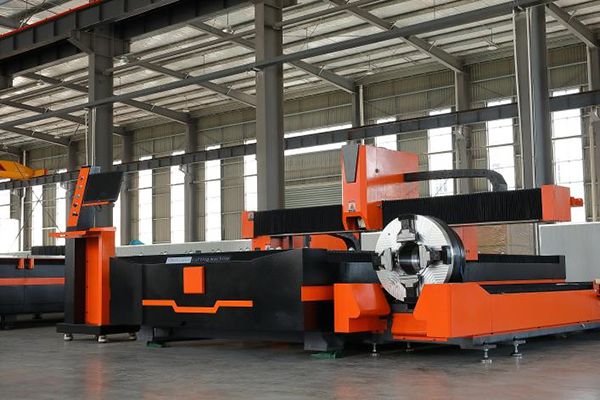

The fiber laser cutting machine can handle tube lengths up to 6 meters. Three chucks are available to adapt to three tube diameters of 120mm, 220mm and 320mm. A support unit is configured for enhanced cutting stability.
